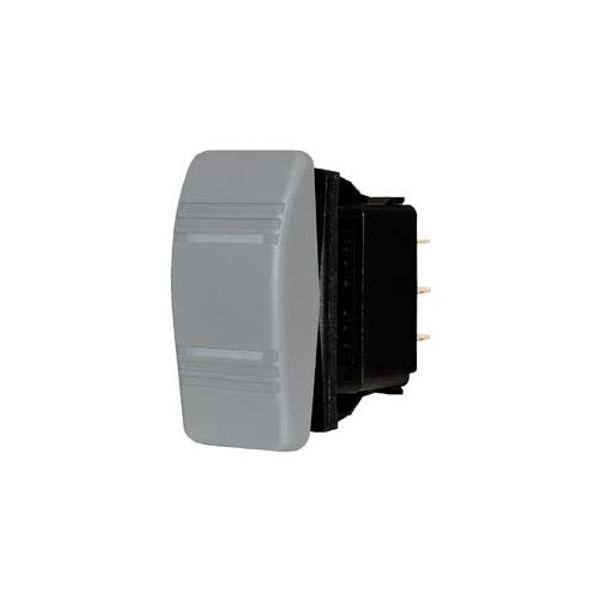

These switches are specially manufactured for mounting in Blue Sea Systems’ waterproof panels. Use of standard Contura switches will not maintain the waterproof integrity of these panels.
Vibration, shock, thermoshock, moisture & salt spray resistant
Meets UL 1500 and ISO 8846 ignition protection requirements
Specifications
Rating: 20 Amps @ 12 Volts DC
Rating: 15 Amps @ 24 Volts DC
Lighted: LED rated 100,000 hours 1/2 life
Seals: Internal & external gasket panel seal
Temp Rating: -40°C to 85°C
Mounting Hole: 36. 83mm x 21. 08mm (1. 45" x 0. 83")
LED Amperage: 18 Milliamperes
DPDT - Double Pole/Double Throw
These switches are specially manufactured for mounting in Blue Sea Systems’ waterproof panels. Use of standard Contura switches will not maintain the waterproof integrity of these panels.
- Rating: 20 Amps @ 12 Volts DC
- Rating: 15 Amps @ 24 Volts DC
- Lighted: LED rated 100,000 hours 1/2 life
- Seals: Internal & external gasket panel seal
- Temp Rating: -40°C to 85°C
- Mounting Hole: 36. 83mm x 21. 08mm (1. 45" x 0. 83")
- LED Amperage: 18 Milliamperes
